H2S - Low Voltage

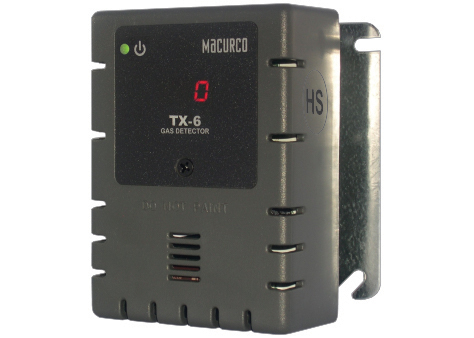

The TX-6-HS Low Voltage monitor provides automatic fan control to help maintain acceptable levels of Hydrogen Sulfide (H2S) in refineries, pulp and paper mills, waste disposal and other commercial facilities – Can be used as a stand-alone detector and controller and as an analog transducer for use with Macurco controls panels and other systems – ETL Listed

Product Downloads

TX-6-HS User Manual Commercial Series Data Sheet 6 Series UL 61010-1 Compliance Certificate

View all of our product downloads here.

Key Features

  • 12-24VAC or 12-32VDC input
  • 5A SPDT Fan control relay
  • 0.5A N.O. or N.C. Alarm Relay
  • Selectable Fan and Alarm Relay Actuation Settings
  • Digital Display (0-50ppm of H2S), Internal Buzzer
  • Coverage Area:  900 sq. ft.
  • 4-20mA current loop

Additional information

Gases Detected
